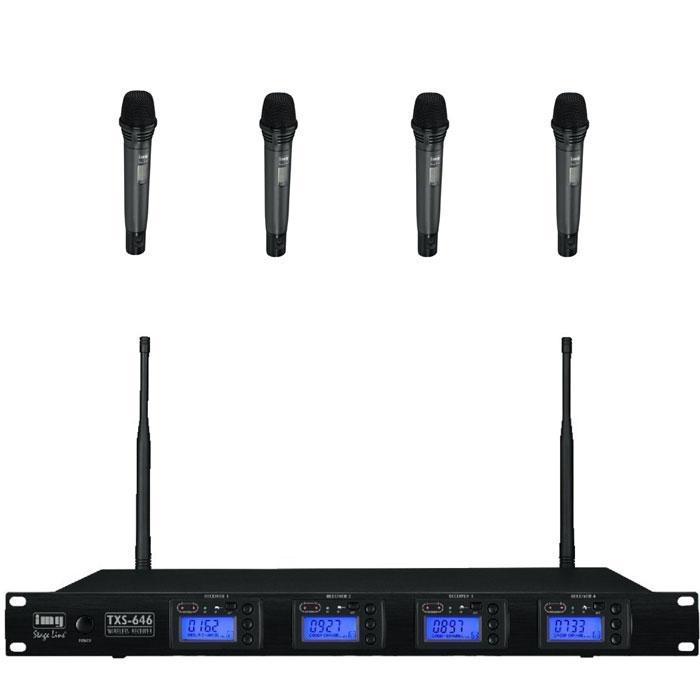

IMG Stageline Quad Wireless Microphone System with 4 x Handheld Mics

£475.00 Ex. VAT
Quad Wireless Microphone System with 4 x Handheld Mics
H7 Media Systems Ltd, Unit 3 Station Road Industrial Estate, Great Dunmow, Essex, CM6 1XD, England
IMG Stageline Quad Wireless Microphone System with 4 x Handheld Mics - Get it now from H7 Media Systems Ltd
Quad Wireless Microphone System With 4 x Handheld Mics

High Quality IMG Stageline Quad Handheld Microphone system.

Channel 38 shared license. You can run upto 12 microphones simultaneously. If you require more than 12 microphones, please call for advice on achieving this.

Features (TXS-646 Receiver):

  • Channel 38 - Shared License
  • ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
  • Automatic scan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch can be adjusted for each channel
  • LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED display for audio signal of each channel
  • XLR output for each channel, bal.
  • 6.3mm output for mixed signal
  • Stable metal housing
  • Supplied with PSU
  • 482mm (19") rack installation, 1RS

Technical Specifications (TXS-646 Receiver):

  • Carrier frequency - Channel 38
  • RF S/N ratio 105dB
  • Audio frequency range 30-18,000Hz
  • THD < 0.5%
  • Dynamic range 120dB
  • Audio output 350mV/600Ω (jack)
  • 25mV/600Ω (XLR, bal.)�
  • Admiss. ambient temp. 0-40 °C
  • Power supply via suppl.
  • Plug-in PSU
  • Dimensions 482x45x310mm
  • Weight 2.9kg

Features(TXS-606HT Transmitter):

  • Dynamic microphone cartridge
  • Adjustable sensitivity
  • Switchable transmitting power (high: 25mW/low: 2.5mW)
  • LCD for group/channel, audio level and battery status
  • Power supply via 2 x 1.5V battery AA size (not supplied)

Technical Specifications(TXS-606HT Transmitter):

  • Carrier frequency - Channel 38
  • Transmitting power 25mW/2.5mW
  • Audio frequency range 30-18,000Hz, ±3dB
  • Frequency stability ±0.005%
  • Operating time > 8h
  • Dimensions Ø 51mm x 265mm
  • Weight 312g
