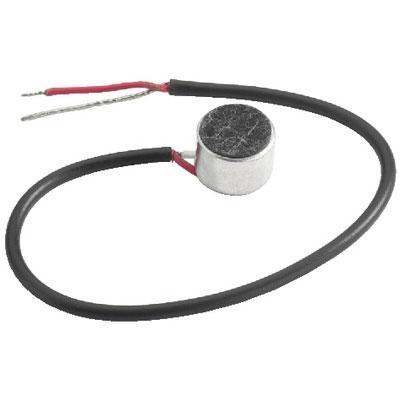

Monacor MCE-101 Electret Condenser Microphone Cartridge

£1.10 Ex. VAT
MCE-101 Electret Condenser Microphone Cartridge
H7 Media Systems Ltd, Unit 3 Station Road Industrial Estate, Great Dunmow, Essex, CM6 1XD, England
Monacor MCE-101 Electret Condenser Microphone Cartridge - Get it now from H7 Media Systems Ltd
Electret condenser microphone cartridge (omnidirectional characteristic), subminiature version, 150mm connection cable.

Technical Specification

  • Frequency range 50-10,000Hz
  • Sensitivity 5.6mV/Pa/1kHz, RL=2.2kΩ
  • Output impedance 2k ohm
  • S/N ratio > 34dB
  • Coupling capacitor 0.1-4.7F
  • Admiss. ambient temp. 0-40 C
  • Power supply 1.5-10V DC current /0.5mA
